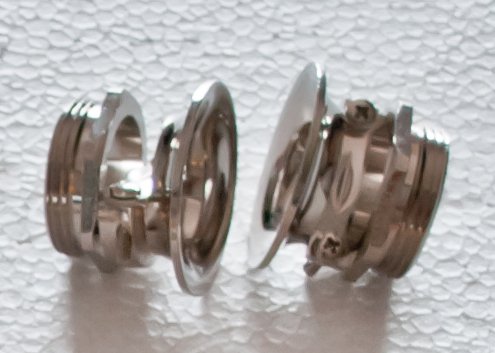

Favorit Cable Gland
Applications areas :- Pressing-screws with bending protection strain and Traction relief cable glands is mainly used for connecting and securing flexible cables or wires to provide an extra protection against pull-out & traction, dust, water, oil, etc. With its outstanding ability in weather resistance, wide clamping range, strong strain relief, high sealing performance, such glands are widely used in the electrical distribution boxes / cabinets, moving machines parts, automatic control, plant engineering, etc.
Raw Material specification :-
Grade of Brass : CuZn39Pb3 / IS 319
Copper + Nickel Content : 56.00 – 59.00%
Zinc : Remainder%
Lead : 1.50 – 3.50%
Iron : 0.35% Max
Total Impurities : 0.40 – 0.70%
| Sizes available :- | PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 | |||||||
| M12, M16, M18, M20, M25, M32, M40, M50, M63, | ||||||||
| special size can be made as per customers drawing and specification | ||||||||
| PART NAME | THREAD | ROD SIZE | TOTAL | THREAD | HOLE – 1 | HOLE – 2 | You Can Find With Similar Name | |
| Round | A / F | LENGTH | LENGTH | |||||
| PG 07 strain-relief cable glands | PG 07 | PG 07 Favorit Cable Gland | ||||||
| PG 09 strain-relief cable glands | PG 09 | 22.00 | 17.00 | 21.50 | 6.00 | 12.50 | 10.00 | PG 09 Favorit Cable Gland |
| PG 11 strain-relief cable glands | PG 11 | 26.00 | 20.00 | 22.50 | 6.00 | 15.00 | 11.60 | PG 11 Favorit Cable Gland |
| PG 13.5 strain-relief cable glands | PG 13.5 | 29.00 | 22.00 | 24.00 | 6.50 | 17.00 | 13.60 | PG 13.5 Favorit Cable Gland |
| PG 16 strain-relief cable glands | PG 16 | 32.00 | 24.00 | 24.00 | 6.50 | 18.50 | 15.60 | PG 16 Favorit Cable Gland |
| PG 21 strain-relief cable glands | PG 21 | 38.00 | 30.00 | 25.00 | 7.50 | 23.50 | 21.00 | PG 21 Favorit Cable Gland |
| PG 29 strain-relief cable glands | PG 29 | 50.00 | 41.00 | 30.50 | 8.00 | 32.00 | 30.00 | PG 29 Favorit Cable Gland |
| PG 36 strain-relief cable glands | PG 36 | 62.00 | 50.00 | 32.00 | 9.00 | 37.00 | 35.00 | PG 36 Favorit Cable Gland |
| PG 42 strain-relief cable glands | PG 42 | PG 42 Favorit Cable Gland | ||||||
| PG 48 strain-relief cable glands | PG 48 | PG 48 Favorit Cable Gland | ||||||
| PART NAME | THREAD | ROD SIZE | TOTAL | THREAD | HOLE – 1 | HOLE – 2 | You Can Find With Similar Name | |
| Round | A / F | LENGTH | LENGTH | |||||
| M 12 strain-relief cable glands | M 12 | M 12 Favorit Cable Gland | ||||||
| M 16 strain-relief cable glands | M 16 | 22.00 | 17.00 | 21.50 | 6.00 | 12.50 | 10.00 | M 16 Favorit Cable Gland |
| M 18 strain-relief cable glands | M 18 | 26.00 | 20.00 | 22.50 | 6.00 | 15.00 | 11.60 | M 18 Favorit Cable Gland |
| M 20 strain-relief cable glands | M 20 | 29.00 | 22.00 | 24.00 | 6.50 | 17.00 | 13.60 | M 20 Favorit Cable Gland |
| M 25 strain-relief cable glands | M 25 | 38.00 | 30.00 | 25.00 | 7.50 | 23.50 | N.A. | M 25 Favorit Cable Gland |
| M 32 strain-relief cable glands | M 32 | 45.00 | 36.00 | 29.00 | 8.00 | 27.00 | N.A. | M 32 Favorit Cable Gland |
| M 40 strain-relief cable glands | M 40 | M 40 Favorit Cable Gland | ||||||
| M 50 strain-relief cable glands | M 50 | M50 Favorit Cable Gland | ||||||
| M 63 strain-relief cable glands | M 63 | M 63 Favorit Cable Gland | ||||||
